MPS-11

MPS-11 Medium Range Search Radar Set - A Medium Range mobile Search Radar set built by General Electric. The MPS-11 provides medium range early warning and detection of aircraft. The output of the radar set is displayed on six identical plan position indicators (PPI) and operators use the display to identify and track potential targets. Once an enemy target is identified, the display is used to guide an interceptor aircraft to the target. A manual plotting board is used to provide an overall view of the airspace and the situation to battle commanders. The MPS-11 is the mobile version of FPS-8.

MPS-11 Manual Plotting Board.	MPS-11 Operations Shelter showing the Receiver Equipment, Plotting Board and six PPIs.
MPS-11 Search Radar System.

MPS-11 Search Radar

MPS-11 Search Radar Element Value Notes Nomenclature MPS-11 Origins FPS-8 Variants MPS-11A Manufacturer General Electric Type Search IEEE Band L Frequency 1280 to 1350 mc PRF 360 pps Pulse Width 3 usec Rotation Speed 0-10 rpm Power 1 megw Horizontal Beam Width 2.5 deg Vertical Beam Width 9 deg Range 160 nmi no delay 220 nmi delay Medium Range Altitude 40,000 ft Introduced Number Made

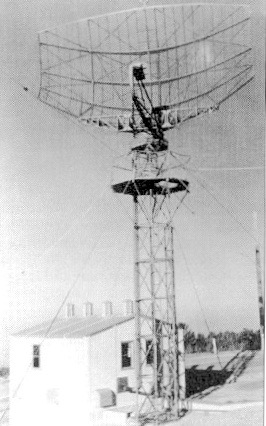

FPS-8/MPS-11 Antenna on Fixed Tower

MPS-11 Components (edit list)

Component	Model	Quantity	Height	Width	Deep	Weight	Notes
Radar Set Group	OA-379	1
Radar Set Group	OA-380	1
Antenna Group	OA-405	1
Power Supply	OA-412A	1
Transmitter Group	OA-413	1
Radar Set Group	OA-416	1
Receiver Group	OA-417	1
Tower	AB-396	1
Pulse Generator Group	OA-1263	1
Plan Position Indicator	GPA-126
Transmitter Trailer Assembly	Van V-112/MPS-11	1	89	92	230	12,000
Distribution Trailer Assembly	Van V-112/MPS-11	1	89	92	230	10,940
Antenna Truck Assembly	M-35 Type Truck	1	113	96	277	12,880
Tower Truck Assembly	M-35 Type Truck	1	113	96	277	19,300
Indicator Truck Assembly	M-35 Type Truck	1	113	96	277	18,400
Power Truck	M-35 Type Truck	2	113	96	277	19,500
Shelter Truck	M-35 Type Trucks	1 1 1	125 133 128	96 96 96	277 277 277	20,100 18,600 17,900
Spare Parts Truck Assembly	M-35 Type Truck	1	113	96	277	17,100

FPS-8/MPS-11 Search Radar Block Diagram.

See Also:

• FPS-8
• US Radar Sets

Sources:

• Winkler, David F., Searching the Skies: the Legacy of the United States Cold War Defense Radar Program, USAF Hq Air Combat Command, 1997, 192 pages, Pdf
• MIL-HDBK-162A, 15 Dec 1965.
